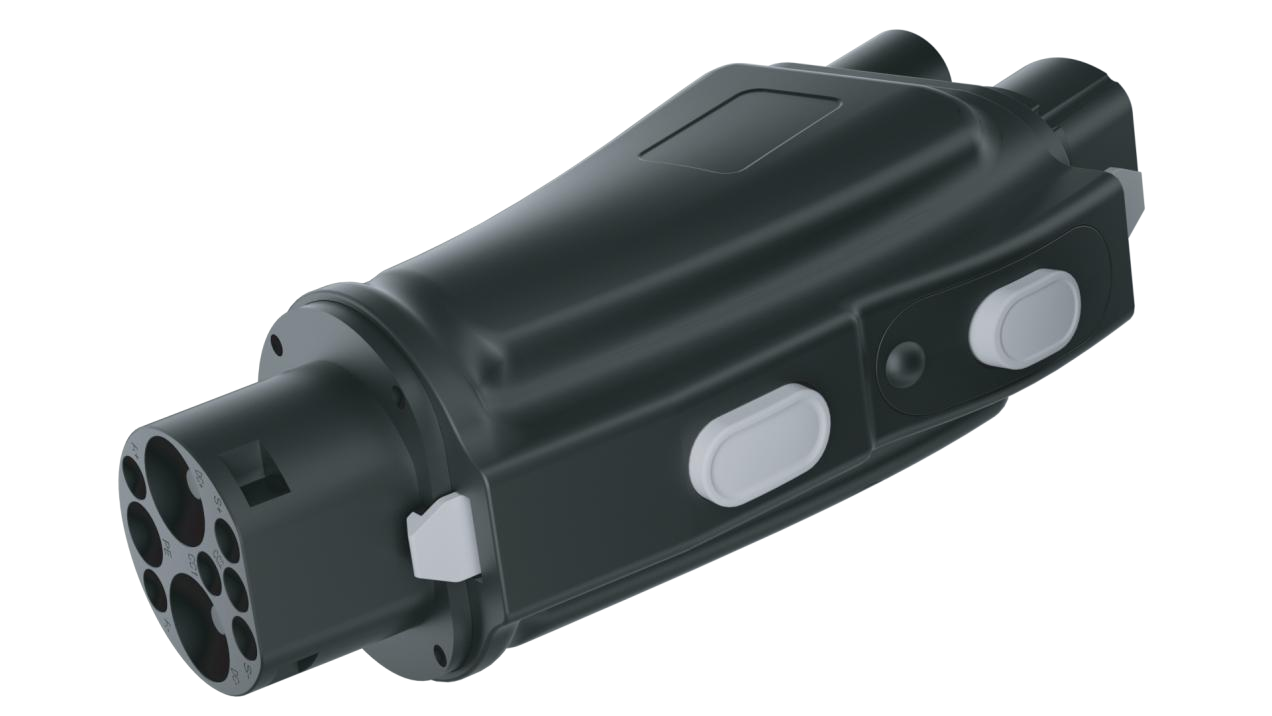

PRODUCTS :

Use only to connect the charging cable on a COMBO 2 charging station to a

GB/T vehicle that has been enabled for DC charging. The location of the

charge port will vary depending on your vehicle model. Refer to your GB/T

vehicle’s owner documentation for the location of the charge port and more

detailed charging instructions.

The product is only applicable to the COMBO2 charger station for the GB/T

Vehicle DC fast charging. Different brands of GB/T Vehicle has different DC

charger port location . Please refer to the user manual of the specific GB/T

vehicle brand, find the corresponding DC charge port and understand its

charging process.

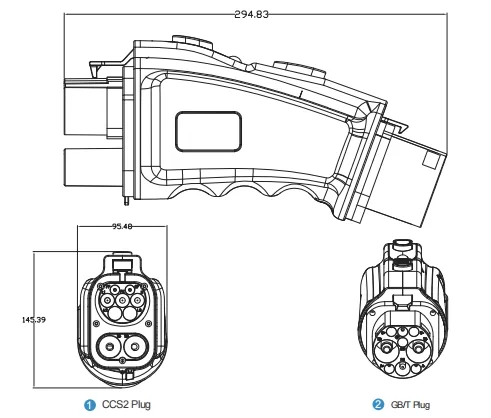

Packing size( L* W* H): 350*172*115mm

Weight ( kg/ pound): 2 .26kg

The charging time depends on the available voltage and current of the charging

station.Affected by various factors,charging time may also be affected by the

temperature of the vehicle battery: too high or too low temperature of the

vehicle battery may limit the charging current, or even do not allow charging to

start . The vehicle will heat or cool the power battery before it is allowed to

charge. For detailed information on charging performance parameters, please

refer to the official website of your purchased GB vehicle.



SPECIFICATIONS :

Power : rated for up to 250kW.

Rated Current : 250A DC

Shell Material : PC+Silicon

Operating Temperature: -30°C to +50°C.

Storage Temperature : -40°C to 85°C

Rated Voltage: UP TO 1000V/DC.

Security : Single Temp. kill switch. Charging stops when adapter reaches 85ºC.

Weight: 1.78kg (Single product) /2.26kg (With box)

Certification: CE

Degree of protection: IP55

(Protection from dirt, dust, oil, and other non-corrosive material. Complete

protection from contact with enclosed equipment. Protection from water, up

to water projected by a nozzle against enclosure from any direction.)
