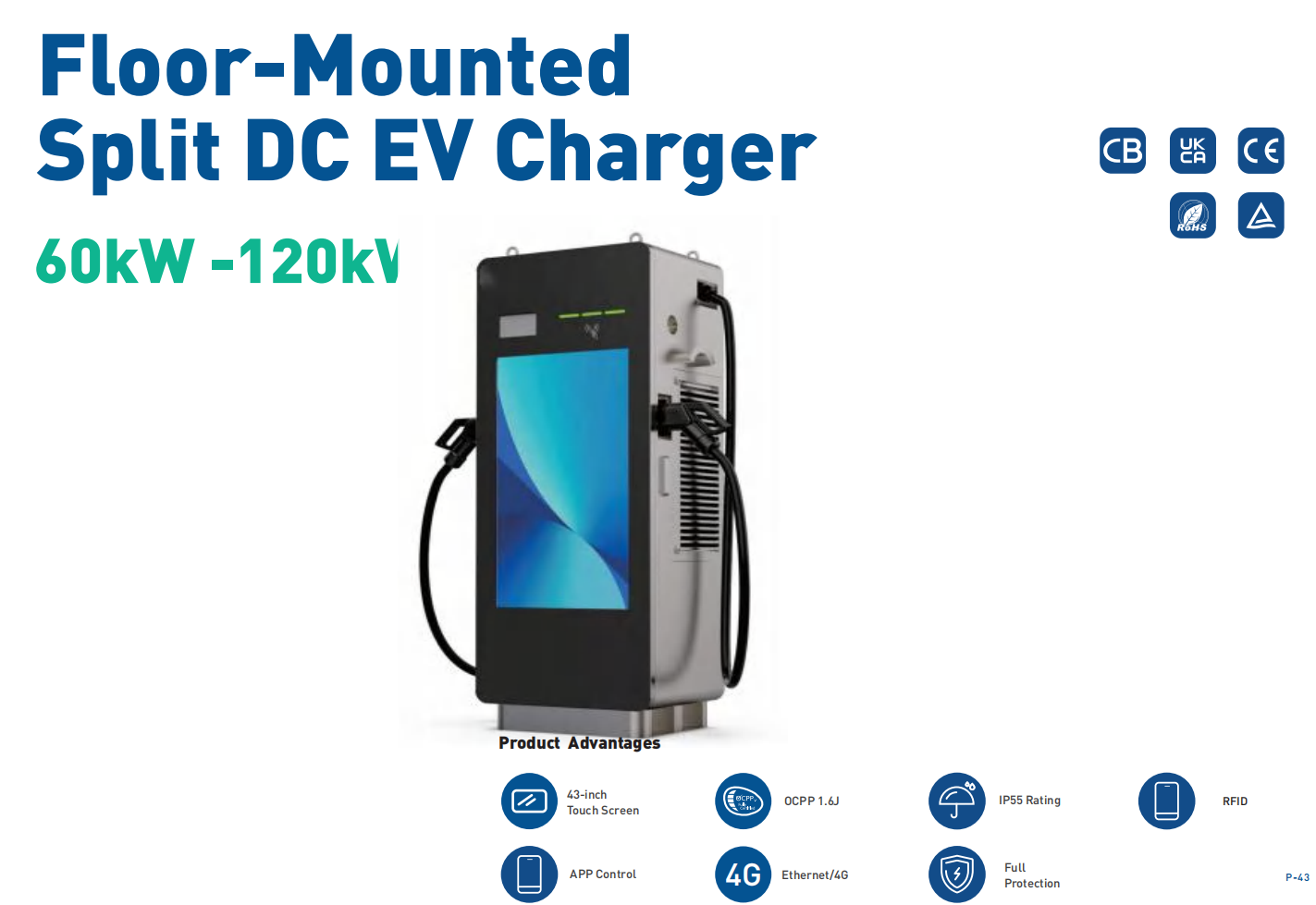

60kw/90kw/120kw 43 Inch Advertising Screen DC EV Fast Charging Station Ethernet/4G/WiF APP Control DC EV Charger CCS GB/T
60kw/90kw/120kw 43 Inch Advertising Screen DC EV Fast Charging Station Ethernet/4G/WiF APP Control DC EV Charger CCS GB/T
EEV Fast charging station for your electric vehicle
EEV Fast charger is a powerful charging station that can deliver up to 50kw,100kw,120kw,200 kW, serves your customers around the clock and lets you deliver a first-class charging experience to keep your customers coming back to your location.
- EEV Fast charger support and services
- Easy to transport, install, and maintain,work
- Modular architecture
- Charge up to 2 vehicles simultaneously
- Distribute power via load balancing
- Implement a prioritization strategy
- Scalable architecture, install as many stations as needed
- OCPP-compliant, compatible with almost any EV in the world
- Easy-to-brand design
- More information please consult
The specification for 50KW CCS CHAdeMO and AC type 2 charging station
Model | 60kW Multi-Standards DC quick charger | |
AC Input | Input Rating | 380Vac± 15% |
| AC Input Connection | 3P+N+PE (Wye connection) | |
| Max. Input Power | Single DC plug:66KVA,43KW AC(optional) | |
| Frequency | 50/60 Hz | |
| Power Factor | >0.99 APFC | |
| Efficiency | 95% | |
DC Output | Output Voltage Range | 50~500Vdc (CHAdeMo), 150~750Vdc (CCS), 48~450Vdc(GB/T) |
| Max.Output Power | 60kW | |
| Voltage Accuracy | ± 1% | |
| Current Accuracy | ± 1% | |
User Interface | TFT-LCD Touch Panel | 7′ o r 10′ T FT-LCD touchable screen(Android or Win CE),15 ‘ optional |
| Emergency Stop Control | Press emergency stop button isolator) between input and ouput Manual release switch | |
| User Authentication | RFID | |
| Display information | Charging process and status / Alarm and warning messages | |
Environment | External | 3/4G,WiFi and Ethernet |
| Internal | CAN Bus/RS485/RS232 | |
| LxWxH | 640X540X1600mm | |
| Protocol and standard | CHAdeMO 2.0 / DIN 70121/ISO15118/IEC61851-23JEC61851-24 | |
| Electrical Isolation | Isolation between input and output | |
| Cooling | Forced Air | |
| Input Protection | OVP,OCP,OPP,OTP,UVP,residual current detection,surge protect cabinet-open detection(rear door | |
| Output Protection | short circuit protection,OCP,OVP,LVP,OTP,residual current detection | |
| Noise | <55dB | |
| Protection | IP54/IK10 | |
| Net weight | 200 kg | |
